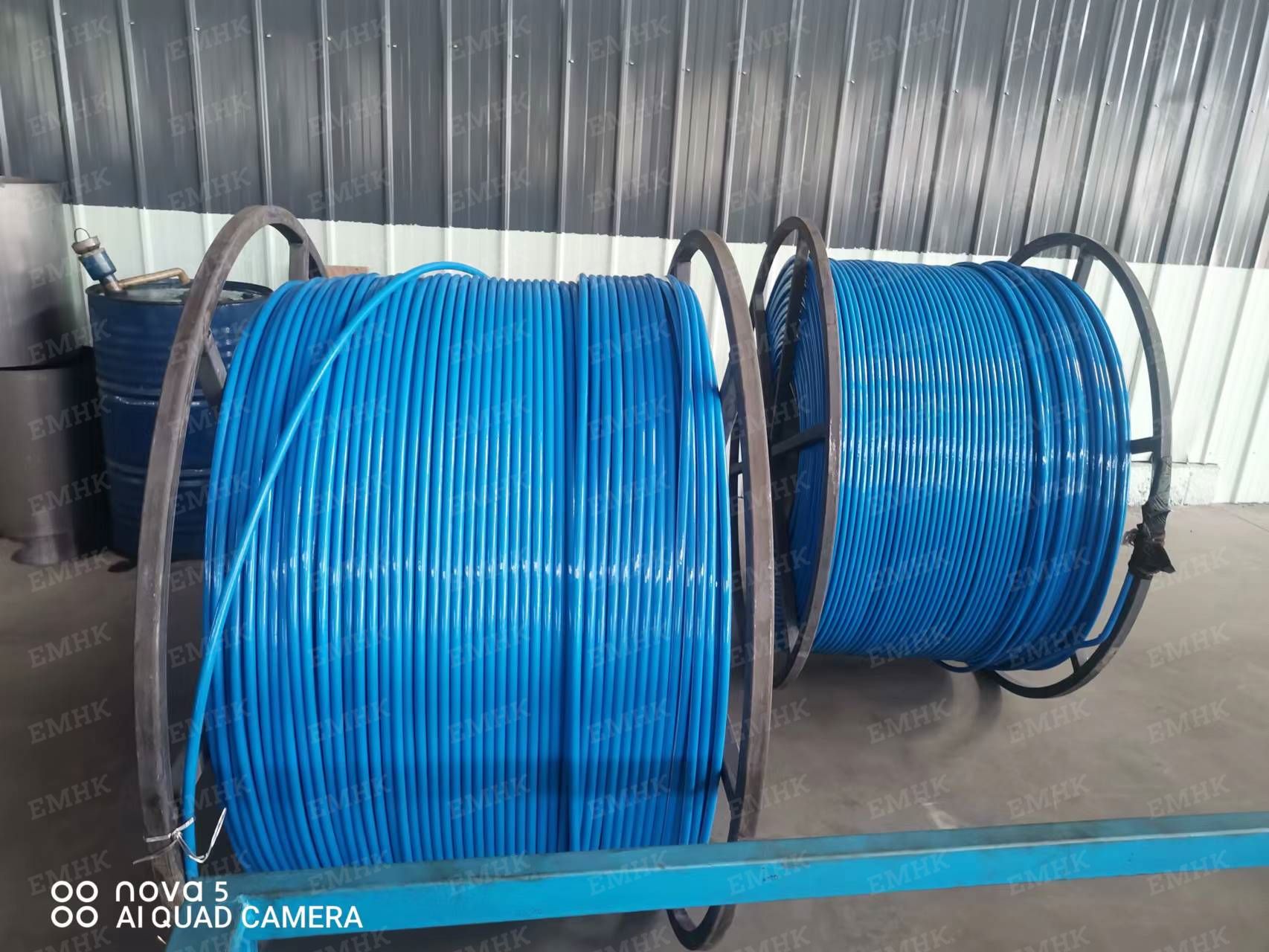

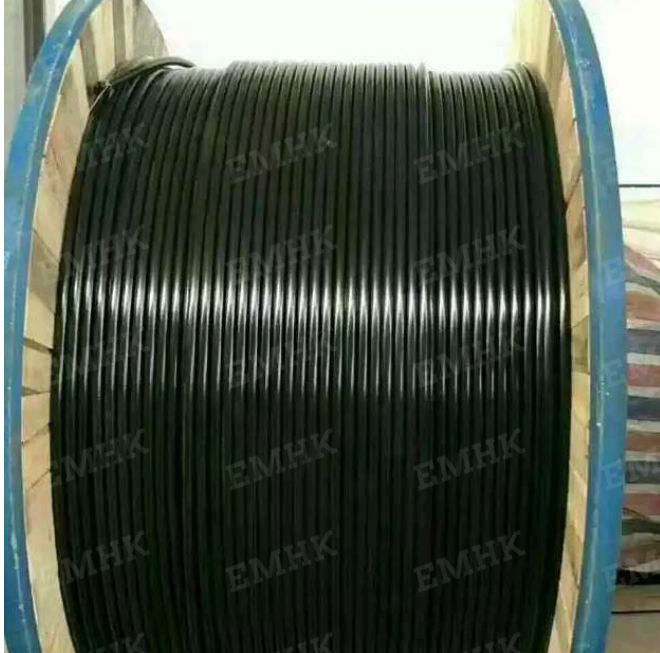

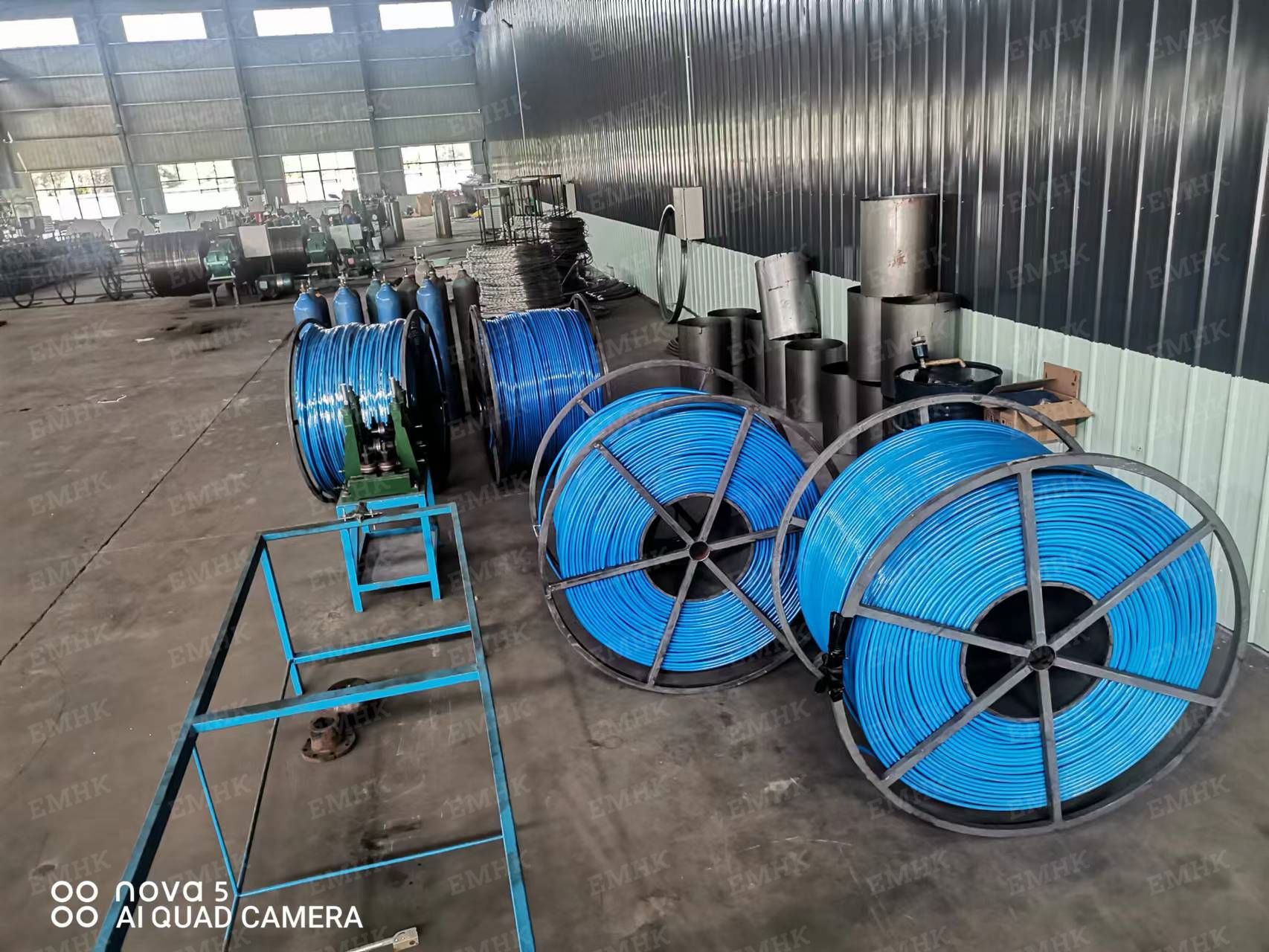

Encapsulated control line

Aailable materials: Austenitic steel 304L, 316L, Duplex 2205 ,Super Duplex 2507 ,Incoloy 825, Inconel 625

OD size:1/8″; 3/16″;1/4″;5/16″;3/8″;1/2″

Wall thickness:0.02″,0.028″,0.035″,0.049″,0.065″.0.083″

Encapsulation materials:Santoprene,F40;F46;FEP (Fluorinated Ethylene Propylene);PVC (Polyvinyl chloride);Nylon Encapsulated etc..

Available Encapsulation shapes: Round Type, Square type, Flatpack

PRODUCT DESCRIPTION

Product Description

Encapsulated control Line for Downhole Chemical Injection

Our products are tested by SGS, BV, APPLUS+ Inspection agents and Center of China National Petroleum Corporation, and each performance index meets America ASTM A269, and related industry standards, partial quality index even exceeds the international level. Our products are well accepted by CNPC, KOC, KNPC,Halliburton, Baker Hughes, Schlumberger, Weatherford ,OXY ect….

EMHK Encapsulated tubings are mainly applied in petroleum industry, chemical industry, shipbuilding, natural gas, and Hydraulic system ect…

ENCAPSULATED CONTROL LINE PRESSURE RATING

Bare tube Material	Encapsulation material	OD (inch)	Wall Thickness (inch)	Working Pressure (MPa)	Length (M/Pcs)
Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625)	F40 F46 FEP (Fluorinated Ethylene Propylene) PVC (Polyvinyl chloride) Nylon Encapsulated etc..	1/8”	0.025”, 0.035”, 0.049”	80–120	50–4000
		1/4”	0.035”, 0.049”, 0.065”	60–120	50–3000
		3/8”	0.035”, 0.049”, 0.065”	60–120	50–2500
		1/2”	0.035”, 0.049”, 0.065”	60–120	50–2000

ENCAPSULATED CONTROL LINE DIMENSIONAL TOLERANCES

SIZE OD		NOMINAL WALL THICKNESS		OUTSIDE DIAMETER TOLERANCE		LENGTH TOLERANCE		WALL THICKNESS TOLERANCE
(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(%)
½	12.7	0.065	1.65	+/-0.005	+/-0.13	+⅛, -0	+3.18, -0	+/-10.0%
¾	19.1	0.065	1.65	+/-0.005	+/-0.13	+⅛, -0	+3.18, -0	+/-10.0%
1	25.4	0.065	1.65	+/-0.005	+/-0.13	+⅛, -0	+3.18, -0	+/-10.0%
1½	38.1	0.065	1.65	+/-0.008	+/-0.20	+⅛, -0	+3.18, -0	+/-10.0%
2	50.8	0.065	1.65	+/-0.008	+/-0.20	+⅛, -0	+3.18, -0	+/-10.0%
2½	63.5	0.065	1.65	+/-0.010	+/-0.25	+⅛, -0	+3.18, -0	+/-10.0%
3	76.2	0.065	1.65	+/-0.010	+/-0.25	+⅛, -0	+3.18, -0	+/-10.0%
4	101.6	0.083	2.11	+/-0.015	+/-0.38	+⅛, -0	+3.18, -0	+/-10.0%
6	152.4	0.109	2.77	+/-0.030	+/-0.76	+1, -0	+25.4, -0	+/-10.0%
OD	Wall (inch)		Materials				Standard	Working Pressure (MPa)	Length
1/8″	0.02,0.028,0.035		Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625)				ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704	60-120 Mpa	Customized
3/16″	0.02,0.028,0.035,0.049
1/4″	0.02,0.028,0.035,0.049 0.065.0.083
5/16″
3/8″
1/2″
OD: Up to 1 Inch The specification and length per coil can be customized according to customer’s requirements.

Encapsulation materials:Santoprene,F40;F46;FEP (Fluorinated Ethylene Propylene);PVC (Polyvinyl chloride);Nylon Encapsulated etc..

Chemical Composition,%
Standard	ASTM A269				ASTM A789		ASTM B704
Material	SS 304	SS 304L	SS 316	SS 316L	Duplex 2205	Super Duplex 2507	Incoloy 625	Incoloy 825
UNS	S30400	S30403	S31600	S31603	S32205	S32750	N06625	N08825
C	0.080	0.035	0.080	0.035	0.030	0.030	0.10	0.05
Mn	2.00	2.00	2.00	2.00	2.00	1.20	0.50	1.00
P	0.045	0.045	0.045	0.045	0.030	0.035	0.015	…
S	0.030	0.030	0.030	0.030	0.020	0.020	0.015	0.030
Si	1.00	1.00	1.00	1.00	1.00	0.80	0.50	0.50
Ni	8.0-11.0	8.0-12.0	10.0-14.0	10.0-15.0	4.5-6.5	6.0-8.0	min 58.0	38.0-46.0
Cr	18.0-20.0	18.0-20.0	16.0-18.0	16.0-18.0	22.0-23.0	24.0-26.0	20.0-23.0	19.5-23.5
Mo	…	…	2.00-3.00	2.00-3.00	3.0-3.5	3.0-3.5	8.0-10.0	2.5-3.5
N	…	…	…	…	0.14-0.20	0.24-0.32	…	…
Cu	…	…	…	…	…	0.50	…	1.5-3.0
Fe							5.0	min 22.0
Al							0.4	0.2
Ti							0.40	0.6-1.2
Cb+Ta							3.15-4.15	…

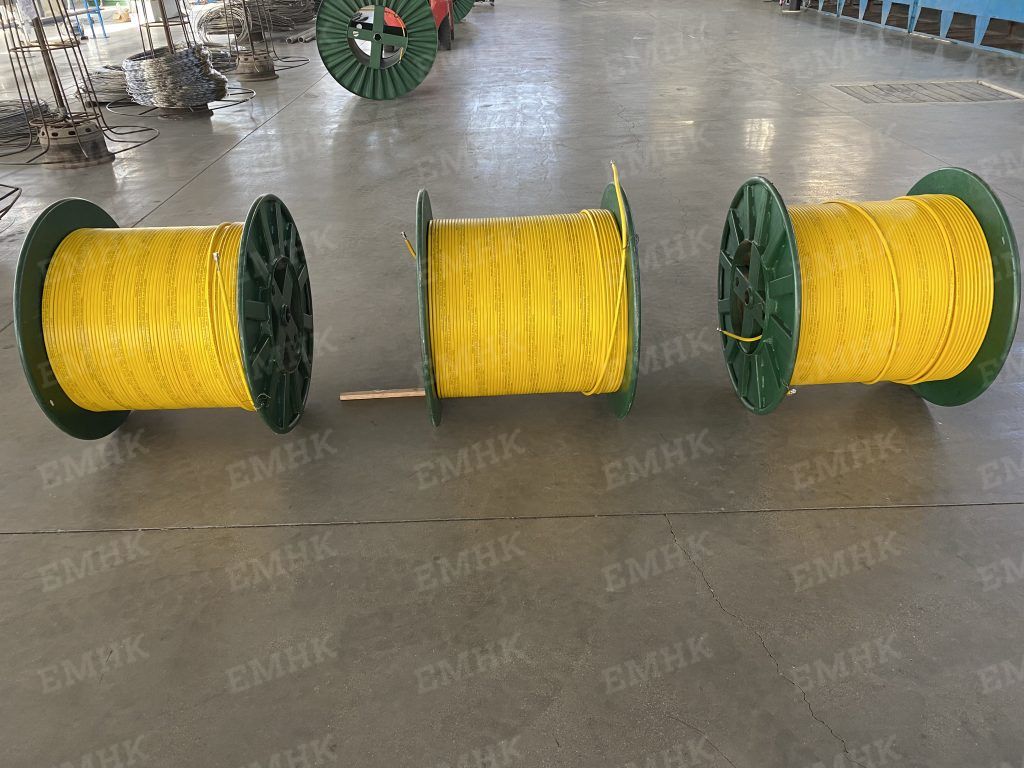

Two joint of 3/8″ x 0.035″ Encapsulated Control Line flatpacked in a 24mm X 13mm jacket, The encapsulation materials can be Santoprene or others nominated by customer, two joint of control line tubing can be color coded. Tube material can be weather stailess steel or alloy steel like Incoloy 825 or Incoloy 625 . Inside of tube,can be pre-flushed, tested and supplied with any fluid,The Flatpack finally will be level wound on wooden drum and install protector to prevent from mechanical damage.

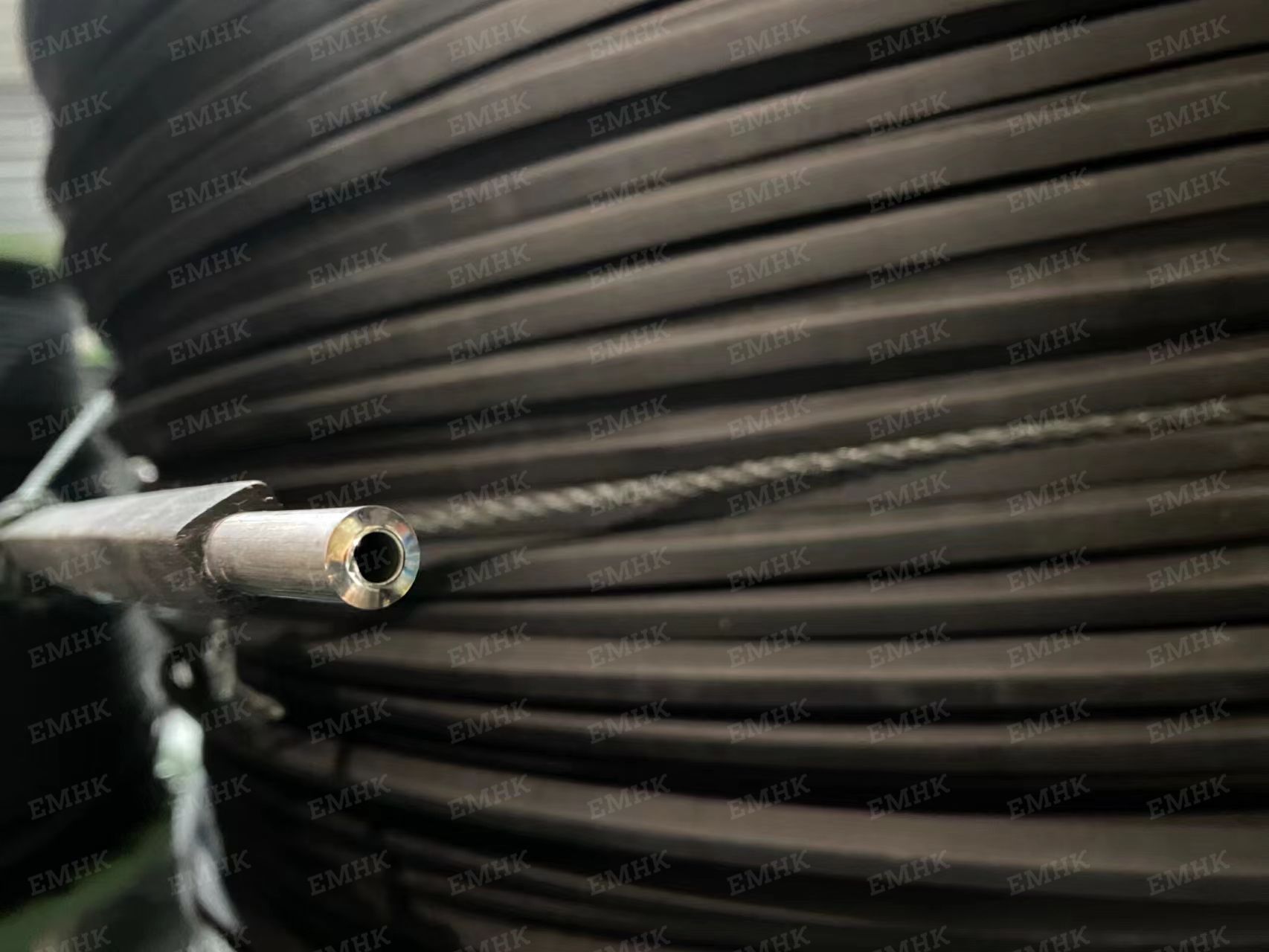

The encapsulated tubing are designed to protect the (duplex) stainless steel tubing coils free from various harsh corrosion environments. Tube will be Encapsulated with high performance thermoplastic or elastomer materials, and could withstand the temperature of 150C or 200C operating temperature environments.The tube size and encapsulation material can be made as per requirement, Flatpack is also available.
