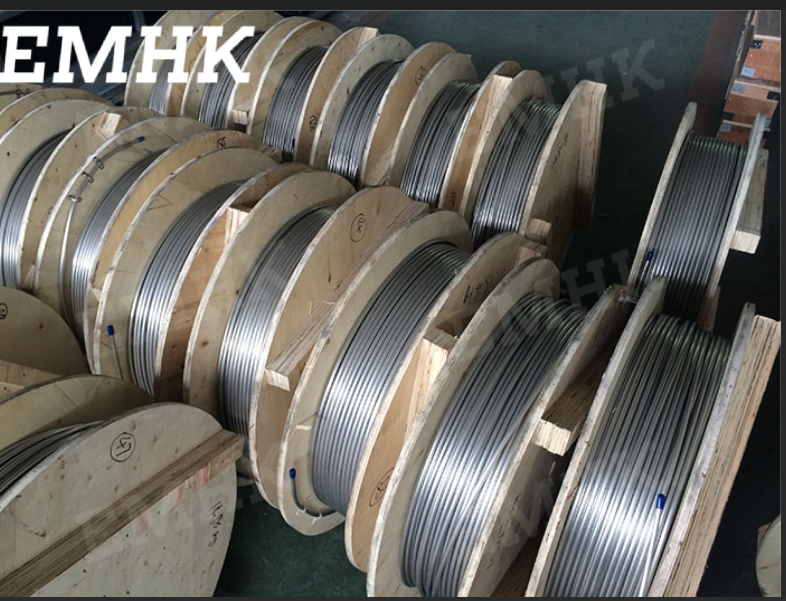

ASME SA789 Inconel 825 Stainless steel coiled hydraulic control line

Material Grade : 304 ，316L, 310S, 2205, 304, 825, 625, etc

Wall thickness: 0.8MM-1.65MM

Outer diameter of steel pipe: 1/8 "-2"

Length: 50M-10000M

Working pressure: 50MPA-120MPA

Note: Material specifications can be customized according to user requirements

PRODUCT DESCRIPTION

Product Description

We are offering Incoloy 825 Coiled Tubing /Control Line , We are Professional Stainless Steel Control Line Suppliers , including 304 Grdae Control Line , Incloy 825 Control Line, SS316 Control Line, 2205 Control Line and other Grades Control Line, Tubings , which are in small bore sizes and precise thickness are available as per the requirements of clients. . It & is widely used in instrumentation Industries. SS 304 capillary tubes and 316 Stainless Steel Coiled tubes are available in precise cut to lengths are also highly effective in a wide range of temperatures. Stainless steel 316 coiled tubing Control Line is generally used for high pressure applications. Our Incloy 825 Seamless Control Lines are mostly used for Hydraulic control lines, Liquid/ Gas Transportation Lines, Medical devices and equipment’s, Chromatography applications, Measurement devices, Remote thermometer systems Small precision stainless steel antenna, Watches, Car antenna tube, Laser engraving equipment etc. As a largest stockholder of SS Coiled Tubings/SS Capillary Tubings /Control Lines includes grades stainless Steel 304 Capillary Pipe, Stainless Steel 304L Capillary Pipe, Stainless Steel 316 Coiled Tubing, Stainless steel 316L Capillary tubing and Duplex 2205 Capillary Pipe , Inconel 625 Control Line,Incoloy 825 Coiled seamless tubes and Incoloy 825 welding Coiled Tubings, those are used in various indutsrial applications.

Key words: Incoloy 825 Capillary tubing, Incoloy825 seamless Coiled tube, Incoloy825 Coiled tubing, Incoloy 825 Control Line, Incoloy825 Capillary Coiled tubing, Stainless Steel Capillary Tubing, 316L capillary pipe, 304 Stainless steel Control Line, Stainless Steel coiled tubing, Steel rolled pipe, Hydraulic Control Line, stainless steel chemical injection line,Exporters Of Glass Capillary Tube, Stainless Steel Capillary Tube Material Distributors, Dealers Of 304 Stainless Steel Capillary Tube, Huge Stock Of SS Coiled Tubing, Stainless Steel Flexible Coiled Tubing Wholesalers.EXPORTERS OF SS 304 Coiled tubing, AVAILABLE STAINLESS STEEL 1/4 IN. CAPILLARY TUBING, HIGH-QUALITY OF incoloy 825 HYDRAULIC CONTROL LINE, HPLC STAINLESS STEEL CONTROL LINE SUPPLIERS, MANUFACTURERS OF HYDRAULIC CONTROL LINES .

Application: Stainless Steel Control Lines also called round tubing, a roll of Stainless Steel coiled tubing thousands of meters long. SS Control Lines Can replace the conventional tubing for a lot of homework, Stainless Steel coiled tubing equipment has the characteristics of the belt under the pressure operation, continuous, equipment is small in size, operating cycle fast, low cost. The SS Control Lines widely used in oil and gas field repair, drilling, completion, logging and other operations plays an increasingly important role in oil and gas exploration and development.Sometimes we can leave at least 30-50cm pipes ends for chemical fufilled. The Stainless Steel Control Lines are used in various critical applications with having an inner surface free from oil, grease and dust particles, This Small sizes precision tubes’ tolerances and thickness as per the requirements by clients.

The chemical composition of Alloy 825 Hydraulic Control Line is outlined in the following

CHEMICAL COMPOSITION ‐ %
Element Content (%)

Nickel, Ni 38-46

Iron, Fe 22

Chromium, Cr 19.5-23.5

Molybdenum, Mo 2.50-3.50

Copper, Cu 1.50-3.0

Manganese, Mn 1

Titanium, Ti 0.60-1.20

Silicon, Si 0.50

Aluminum, Al 0.20

Carbon, C 0.050

Sulfur, S 0.030

Physical Properties

The physical properties of stainless steel grade 825 Hydraulic Control Lines are tabulated below.

PHYSICAL PROPERTIES
Yield strength: ≥45,000 psi
Tensile strength: ≥100,000 psi

OD：0.250"-0.625"

Wall Thk : 0.032"-0.065"

Length:Max. 15000M/PCS

Note: special specifications, materials and length of products can be customized according to customer requirements

1. Material:

American Standard Material: TP304 TP304L TP304H TP321 TP321H TP316L TP316SS

TP316Ti TP347 TP347H TP317L TP309S TP310S 904L

Russian standard Material: 08X18H10 03X18H11 10X17H13M2T 03X17H13M2

12X18H10T 08X18H10T 08X18H12B

German standard material: 1.4301 1.4306 1.4541 1.4404 1.4571 1.4550

Japanese standard material: SUS304 SUS304L SUS321 SUS316L

SUS316Ti SUS347 SUS800 SUS840

Double-Grade Material: 304/304L 316/316L 321/321H 347/347H

Super duplex steel: 2205 2304 S31803 S32750

Inconel 600,Inconel 601,Inconel 625,Inconel 725,Incoloy 800,Incoloy 800H,Incoloy 800HT,

Incoloy 825,Incoloy 901,Incoloy 925Incoloy 926 Etc.

Standard Stainless Steel Coiled Tubing Control Line Pressure Rating and Length:

Stainless Steel Coiled Tubing Control Line
ITEM	Grade	Size (MM)	Length (Mtrs)	Pressure (Mpa)
1	316L 304L 304 625 825 2205 2507	1/8″×0.025″	3200	80
2	316L 304L 304 625 825 2205 2507	1/8″×0.035″	3200	100
3	316L 304L 304 625 825 2205 2507	1/4″×0.035″	2000	100
4	316L 304L 304 625 825 2205 2507	1/4″×0.049″	2000	100
5	316L 304L 304 625 825 2205 2507	3/8″×0.035″	1500	80
6	316L 304L 304 625 825 2205 2507	3/8″×0.049″	1500	100
7	316L 304L 304 625 825 2205 2507	1/2″×0.049″	1000	80
8	316L 304L 304 625 825 2205 2507	1/2″×0.065″	1000	100
9	316L 304L 304 625 825 2205 2507	φ3mm×0.7mm	3200	80
10	316L 304L 304 625 825 2205 2507	φ3mm×0.9mm	3200	100
11	316L 304L 304 625 825 2205 2507	φ4mm×0.9mm	3000	100
12	316L 304L 304 625 825 2205 2507	φ4mm×1.1mm	3000	100
13	316L 304L 304 625 825 2205 2507	φ6mm×0.9mm	2000	100
14	316L 304L 304 625 825 2205 2507	φ6mm×1.1mm	2000	100
15	316L 304L 304 625 825 2205 2507	φ8mm×1mm	1800	80
16	316L 304L 304 625 825 2205 2507	φ8mm×1.2mm	1800	100
17	316L 304L 304 625 825 2205 2507	φ10mm×1mm	1500	70
18	316L 304L 304 625 825 2205 2507	φ10mm×1.2mm	1500	70
19	316L 304L 304 625 825 2205 2507	φ10mm×2mm	500	100
20	316L 304L 304 625 825 2205 2507	φ12mm×1.5mm	500	80

OTHER STAINLESS STEEL CONTROL LINE Specification:

Thickness	0.1 to 2mm,
Brand	Imported
Material Grade	304,304L,316,316L,321,316Ti,Duplex 2205,Monel400,Inconel 625,Inconel 825
Diameter	1.5 to 15 mm OD, expecially 1/4inch, 3/8 inch used largely. Stock size: 6.35mm1.24mm ,80.5mm ,80.6mm,80.8mm, 80.9mm,81mm, 9.531.24mm,101mm,ect..
Shape	Round
Unit Pipe Length	we can produce at least 8000feet-10,000 feet per Length, Also the Length can be customised by clients,
Range	All sizes and length available
Size	As per the requirment
Surface	Bright annealed, Polished
Pipe Fluid	Chemical, Water, Gas,
Minimum Order Quantity	50 Feet

DIMENSIONS AND WALL THICKNESS OF STAINLESS STEEL COILED TUBE CONTROL LINE

STAINLESS STEEL COILED TUBING CONTROL LINE

CHEMICAL COMPOSITION

The below table shows the chemical composition of the used for Stainless Steel Control Line:

STAINLESS STEEL CONTROL LINE GRADES	UNS	C	Mn	P	S	Si	Cr	Ni	Mo	Ti	Nb	N
TP304	S30400	0.08	2	0.045	0.03	1	18.0-20.0	8.0-11.0
TP304L	S30403	0.035	2	0.045	0.03	1	18.0-20.0	8.0-13.0
TP316	S3160	0.08	2	0.045	0.03	1	16.0-18.0	11.0-14.0	2.0-3.0
TP316L	S31603	0.035	2	0.045	0.03	1	16.0-18.0	10.0-14.0	2.0-3.0

STAINLESS STEEL CONTROL LINE MECHANICAL PROPERTIES

Material	Heat	Temperure	Tensile Strength	Yield Strength	Elongation %, Min
	Treatment	Min.	Ksi (MPa), Min.	Ksi (MPa), Min.
		º F(º C)
TP304	Solution	1900 (1040)	75(515)	30(205)	35
TP304L	Solution	1900 (1040)	70(485)	25(170)	35
TP316	Solution	1900(1040)	75(515)	30(205)	35
TP316L	Solution	1900(1040)	70(485)	25(170)	35

SS HYDRAULIC CONTROL LINE PRESSURE RATING

OD(INCH)	WALLTHICKNESS(INCH)	MIN TENSILE STRENGTH (PSI)	*THEORETICAL BURST PRESSURE (PSI)**	WORKING PRESSURE (PSI) 25% OF BURST	THEORETICAL YIELD POINT (PSI)**	COLLAPSE PRESSURE * (PSI)**
0.250	0.020	30,000	75,000	14,286	3,571	5,714	4,416
0.250	0.028	30,000	75,000	21,649	5,412	8,660	5,967
0.250	0.035	30,000	75,000	29,167	7,292	11,667	7,224
0.250	0.049	30,000	75,000	48,355	12,089	19,342	9,455
0.250	0.065	30,000	75,000	81,250	20,313	32,500	11,544
0.375	0.020	30,000	75,000	8,955	2,239	3,582	3,029
0.375	0.028	30,000	75,000	13,166	3,292	5,266	4,145
0.375	0.035	30,000	75,000	17,213	4,303	6,885	5,077
0.375	0.049	30,000	75,000	26,534	6,634	10,614	6,816
0.375	0.065	30,000	75,000	39,796	9,949	15,918	8,597
0.500	0.020	30,000	75,000	6,522	1,630	2,609	2,304
0.500	0.028	30,000	75,000	9,459	2,365	3,784	3,172
0.500	0.035	30,000	75,000	12,209	3,052	4,884	3,906
0.500	0.049	30,000	75,000	18,284	4,571	7,313	5,304
0.500	0.065	30,000	75,000	26,351	6,588	10,541	6,786
0.500	0.083	30,000	75,000	37,275	9,319	14,910	8,307
0.625	0.020	30,000	75,000	5,128	1,282	2,051	1,859
0.625	0.028	30,000	75,000	7,381	1,845	2,953	2,568
0.625	0.035	30,000	75,000	9,459	2,365	3,784	3,172
0.625	0.049	30,000	75,000	13,947	3,487	5,579	4,335
0.625	0.065	30,000	75,000	19,697	4,924	7,879	5,591
0.625	0.083	30,000	75,000	27,124	6,781	10,850	6,910
0.625	0.095	30,000	75,000	32,759	8,190	13,103	7,734
0.625	0.109	30,000	75,000	40,172	10,043	16,069	8,639
0.750	0.028	30,000	75,000	6,052	1,513	2,421	2,156
0.750	0.035	30,000	75,000	7,721	1,930	3,088	2,669
0.750	0.049	30,000	75,000	11,273	2,818	4,509	3,664
0.750	0.065	30,000	75,000	15,726	3,931	6,290	4,749
0.750	0.083	30,000	75,000	21,318	5,330	8,527	5,905
0.750	0.095	30,000	75,000	25,446	6,362	10,179	6,637
0.750	0.109	30,000	75,000	30,733	7,683	12,293	7,453
0.750	0.120	30,000	75,000	35,294	8,824	14,118	8,064
0.875	0.020	30,000	75,000	3,593	898	1,437	1,340
0.875	0.028	30,000	75,000	5,128	1,282	2,051	1,859
0.875	0.035	30,000	75,000	6,522	1,630	2,609	2,304
0.049	30,000	75,000	9,459	2,365	3,784	3,172
0.875	0.065	30,000	75,000	13,087	3,272	5,235	4,126
0.875	0.083	30,000	75,000	17,560	4,390	7,024	5,152
0.875	0.095	30,000	75,000	20,803	5,201	8,321	5,807
0.875	0.109	30,000	75,000	24,886	6,221	9,954	6,543
0.875	0.120	30,000	75,000	28,346	7,087	11,339	7,100
1.000	0.028	30,000	75,000	4,449	1,112	1,780	1,633
1.000	0.035	30,000	75,000	5,645	1,411	2,258	2,027
1.000	0.049	30,000	75,000	8,149	2,037	3,259	2,796
1.000	0.065	30,000	75,000	11,207	2,802	4,483	3,647
1.000	0.083	30,000	75,000	14,928	3,732	5,971	4,567
1.000	0.095	30,000	75,000	17,593	4,398	7,037	5,159
1.000	0.109	30,000	75,000	20,908	5,227	8,363	5,827
1.000	0.120	30,000	75,000	23,684	5,921	9,474	6,336
1.000	0.134	30,000	75,000	27,459	6,865	10,984	6,963
1.250	0.035	30,000	75,000	4,449	1,112	1,780	1,633
1.250	0.049	30,000	75,000	6,380	1,595	2,552	2,260

STAINLESS STEEL HYDRAULIC CONTROL LINE STOCK ALSO SEARCH FOR

stainless steel Coiled Tubing Control Line trader,stainless steel Hydraulic Control Line ,304 stainless steel Hydraulic Control Line, hplc stainless steel capillary tubing,cutting stainless steel coiled tubing,stainless steel 1/4 in. capillary tubing, weight of stainless steel Capillary pipe per foot,weight of stainless steel Coiled pipe,stainless steel Coiled pipe for sale,stainless steel Coiled Pipe weight per foot,Stainless Steel Coiled tube Suppliers,stainless steel Coiled tubing grades,stainless steel Ciled tube hs code,stainless steel Capillary pipe weight chart india,stainless steel Coiled tubing metric, 304 stainless steel Hydraulic Control Line properties,stainless steel Coiled pipe section properties, stainless steel Coiled Tube supplier in china, exporter of stainless steel Coiled pipe ,304 stainless steel Coiled pipes, stainless steel Coiled tubes distributor, stainless steel Control Line manufacturer in china, ss seamless Control Line stockholder in China,Stainless Steel Control Line Suppliers, seamless Control Line exporter.

3,.Production standard:

China Standard : GB/T14975/14976/13296
                        American Standard: ASTM A269/A312/A213/A511/A789/A790
                         Japanese standard: JISG3459/3463
                        German standard: DIN17456/17458

European standard: EN10216-5

4. The range of applications: petroleum, chemical, pharmaceutical, food, machinery, aerospace, construction, military, hardware,gas boilers, plumbing devices, ships, power plants and other industry

For example:

1)Medical Acupuncture with Hydraulic Control Line,

2)High-pressure instrumentation with Hydraulic Control Line,

3)Coal exploration with a Hydraulic Control Line

4)Thermostat with Hydraulic Control Line

5)Beer machine with stainless steel Hydraulic Control Line

6)Drinking water equipment with stainless steel Hydraulic Control Line

7)Danfoss expansion valve with stainless steel Hydraulic Control Line

5. Specifications:

1）.Outerdiameter :0.3mm-10mm Tolerance:0.005mm-0.01mm

2）.Wallthickness :0.08mm-1.5mm Tolerance :0.01mm-0.02mm

3）. Single length :10mm-8000mm
