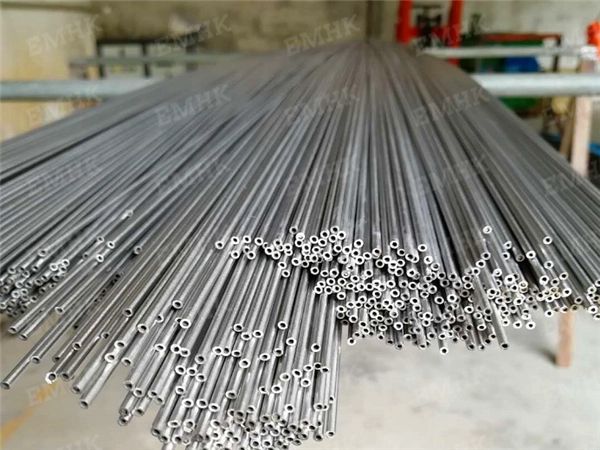

stainless steel precision tube for instrumentation

We, Eastern Metal(HK）Industrial Co.,Ltd is the leading manufacturer, wholesaler, trader and exporter of Stainless steel capillary tube , Stainless steel Capillary pipe, Stainless steel seamless Capillary tube, , neddle tube .We herewith introduce The Stainless Steel precision tube for you , the coiled tubings are used while supplying liquids and gases from sensors to measuring instruments. We supply large Quantity stainless steel control line every year, Bright surface, without any welding Joints, It made by one monether material. We are willing to do the Hydraulic Testing, PMI testing for you once you choose us. Sincerely hope we can start cooperate soon!

PRODUCT DESCRIPTION

Stainless steel tubes are delivered in straight lengths

Steel grades ensures high corrosion resistance

Special eccentricity and controlled hardness is ideal for hydraulic & instrumetation system

High surface smoothness and close dimensional tolerance, polished outside surface is the option

High inside surface cleanness

Tube be eddy current tested. Hydrostatic test is the option

The tube mill is ISO 9001, PED 97/97/23/EC approved

-Application

Chemical

Petrochemical

Oil and gas industries

Power generation

-Order norm: ASME SA269

-Tube type: cold drawn seamless tubes

-Delivery condition: Solution annealed and polished, bright annealed

-Order specification (in metric size mm):

6.0 x 1.0

6.0 x 1.2

6.0 x 1.5

8.0 x 1.0

8.0 x 1.2

8.0 x 1.5

10.0 x 1.0

10.0 x 1.2

10.0 x 1.5

10.0 x 2.0

12.0 x 1.0

12.0 x 1.2

12.0 x 1.5

12.0 x 2.0

Description details
Item	stainless steel welded pipe sanitary piping. Food Grade stainless steel pipe, Mirror Surface Steel Pipe
Steel grade	200 series,300 series,400 series
Standard	ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605, GB13296
Material	304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,202,Alloy 825/625
Surface	We can produce Both Inside and Outside are Mirror Surface if you require.
Type	hot rolled and cold rolled, Welded and Seamless Pipes
stainless steel round pipe/tube
Size	Wall thickness	1mm-150mm(SCH10-XXS)
	Outer diameter	6mm-2500mm (3/8″-100″)
stainless steel square pipe/tube
Size	Wall thickness	1mm-150mm(SCH10-XXS)
	Outer diameter	4mm4mm-800mm800mm
stainless steel Rectangular Pipe/tube
Size	Wall thickness	1mm-150mm(SCH10-XXS)
	Outer diameter	6mm-2500mm (3/8″-100″)
	Length	4000mm,5800mm,6000mm,12000mm,or as required.
Trade terms	Price terms	FOB,CIF,CFR,CNF,Ex-work
	Payment terms	T/T,
Delivery time	Prompt delivery or as the order quantity.
Export to	Singapore，Saudi Arabia,Brazil,Thailand,Korea,Egypt,Oman,,Kuwait, Viet Nam,Dubai, Russia,etc
Package	Standard export seaworthy package,or as required.
Application	Widely used in petroleum,foodstuff, Kitchen, chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper making,shipbuilding,boiler fields. Pipes also can be made according to the customer’s required.
Contact	If you have any questions,please feel free to contact me.
Container size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM

STAINLESS STEEL ROUND TUBE CHEMICAL COMPOSITION

The below table shows the chemical composition of the used for Stainless Steel Round Tube:

GRADES	UNS	C	Mn	P	S	Si	Cr	Ni	Mo	Ti	Nb	N
TP304	S30400	0.08	2	0.045	0.03	1	18.0-20.0	8.0-11.0
TP304L	S30403	0.035	2	0.045	0.03	1	18.0-20.0	8.0-13.0
TP316	S3160	0.08	2	0.045	0.03	1	16.0-18.0	11.0-14.0	2.0-3.0
TP316L	S31603	0.035	2	0.045	0.03	1	16.0-18.0	10.0-14.0	2.0-3.0

STAINLESS STEEL ROUND TUBE MECHANICAL PROPERTIES

Material	Heat	Temperure	Tensile Strength	Yield Strength	Elongation %, Min
	Treatment	Min.	Ksi (MPa), Min.	Ksi (MPa), Min.
		º F(º C)
TP304	Solution	1900 (1040)	75(515)	30(205)	35
TP304L	Solution	1900 (1040)	70(485)	25(170)	35
TP316	Solution	1900(1040)	75(515)	30(205)	35
TP316L	Solution	1900(1040)	70(485)	25(170)	35

STAINLESS STEEL POLISHED PIPE SIZE / POLISHED PIPE DIMENSIONS / POLISHED PIPE WEIGHT CHART

NOMINAL PIPE SIZE	OUTSIDE DIAMETER (INCHES)
1/2″	0.84
3/4″	1.05
1″	1.315
1-1/4″	1.66
1-1/2″	1.9
2″	2.375
2-1/2″	2.875
3″	3.5
3-1/2″	4

AVAILABLE STOCK OF SS POLISHED PIPE
