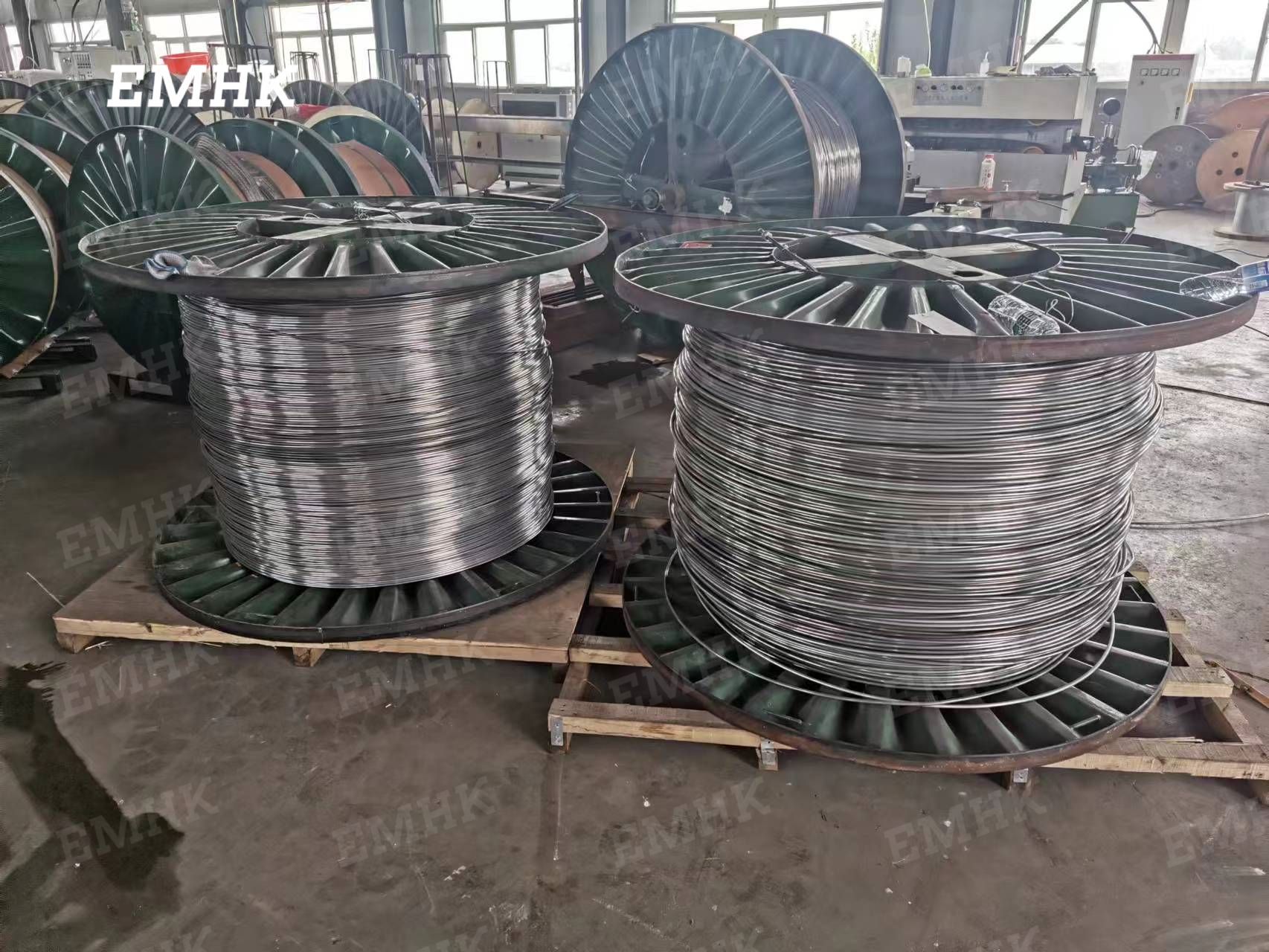

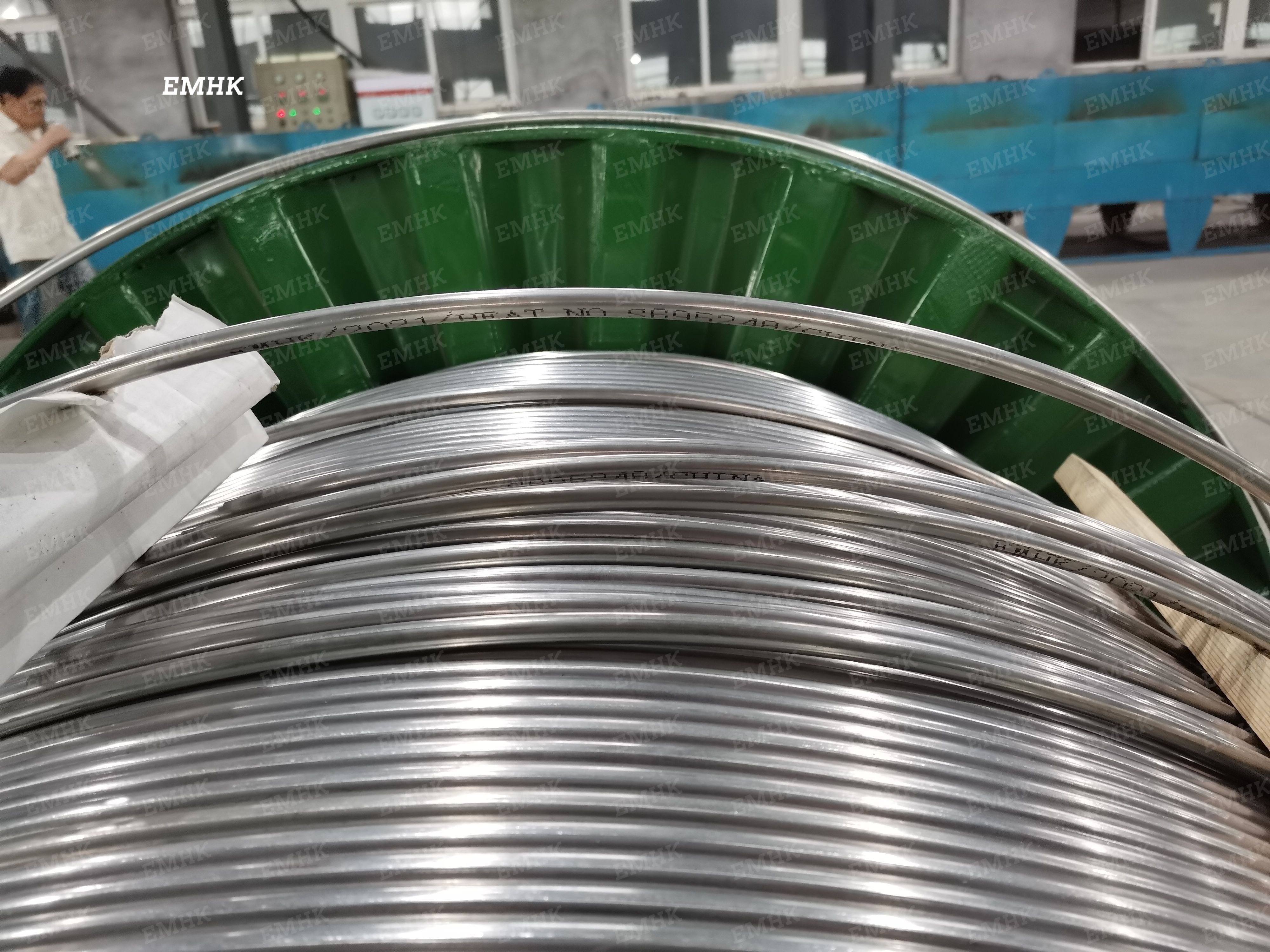

304 Stainless steel capillary Downhole Tubing 1/4″

Material Grade : 304 ，316L, 310S, 2205, 304, 825, 625, etc

Wall thickness: 0.8MM-1.65MM

Outer diameter of steel pipe: 1/8 "-2"

Length: 50M-10000M

Working pressure: 50MPA-120MPA

Note: Material specifications can be customized according to user requirements

PRODUCT DESCRIPTION

Product Description

304 Capillary Tubing

Dear customers, I am honored to introduce our hot-selling Stainless Steel 304 Capillary Tubing to you. Because of the best quality and best price , We become a leader in Stainless Steel Coiled Tubings' field. Our coiled tubings are supplied to all around the world. The mechanical properties and chemical composition of our tubings are in full compliance with the standard ASTM A269, and the pipes can accept SSC and HIC tests, hydraulic tests and PMI tests. We can provide various test related certificates .Eastern Metal(HK) Industrial Co.,LTD, which is one of the reputed manufacturer, supplier & exporter of Stainless Steel Capillary Tubing and Coiled Tubing, We specialize in the supply of high quality Seamless Capillary Tubing in stainless steel 316 and 304 grades which are highly resistant to corrosion. SS Coiled Tubing is the preferred choice for most applications due to greater corrosion resistance and precision. We ensure the highest surface quality in all of our SS Coiled Tubing. We offered 304l stainless steel coiled tubing , which are polished, cleaned, passivated and are ready for immediate use. We are also well known SS Capillary Tubing and Coiled tubings' Manufacturer in China. Buy SS Capillary and Coiled tubing at best price in China from us as compared to the market price.Sincerely look forward to cooperating with you.

Key words: TP 316L Capillary Tubing for Downhole Control Line, 316L Downhole Chemical Injection Tubing 3/8″OD*0.049″WT, SS 316L Coiled Tubing, 1/4inch OD* 0.049inch Wall thickness, 316L grade Downhole Chemical Injection Tubing , Downhole Chemical Injection Tubing , Duplex 2205 capillary pipe, Monel400, Inconel 825 capillary pipe. Stainless steel coiled tubing, stainless steel bening pipe, 316L Steel rolled pipe.bending stainless steel tubing into coil, 316L coiled tubing,downhole compeletion tools, capillary tube Seamless Capillary Tube Coil Stainless Steel Pipe Coiled Tubing Chemical Injection Line,STAINLESS STEEL CAPILLARY TUBE SUPPLIERS,316 STAINLESS STEEL CAPILLARY tubing, STAINLESS STEEL 316L CAPILLARY TUBING, SEAMLESS STAINLESS STEEL CAPILLARY TUBE MANUFACTURER CHINA,STAINLESS STEEL WELDED CAPILLARY TUBE, STAINLESS STEEL CAPILLARY TUBING IMPORTER, STAINLESS STEEL 316L CAPILLARY PIPE SUPPLIER, SS CAPILLARY TUBING in China.316L grade Downhole Chemical Injection Tubing Manufacture in China.

PHYSICAL PROPERTIES

Yield strength: ≥40,000 psi

Tensile strength: ≥70,000 psi

Maximum Hardness: 200HV

OD:0.125"-0.625"

Wall Thk : 0.025"-0.065"

Length:Max. 15000M/PCS

1. Material:

American Standard Material: TP304 TP304L TP304H TP321 TP321H TP316L TP316SS

TP316Ti TP347 TP347H TP317L TP309S TP310S 904L

Russian standard Material: 08X18H10 03X18H11 10X17H13M2T 03X17H13M2

12X18H10T 08X18H10T 08X18H12B

German standard material: 1.4301 1.4306 1.4541 1.4404 1.4571 1.4550

Japanese standard material: SUS304 SUS304L SUS321 SUS316L

SUS316Ti SUS347 SUS800 SUS840

Double-Grade Material: 304/304L 316/316L 321/321H 347/347H

Super duplex steel: 2205 2304 S31803 S32750

Inconel 600,Inconel 601,Inconel 625,Inconel 725,Incoloy 800,Incoloy 800H,Incoloy 800HT,

Incoloy 825,Incoloy 901,Incoloy 925Incoloy 926 Etc.

Standard Stainless Steel Coiled Tubing Pressure Rating and Length:

Stainless Steel Coiled Tubing
ITEM	Grade	Size (MM)	Length (Mtrs)	Pressure (Mpa)
1	316L 304L 304 625 825 2205 2507	1/8″×0.025″	3200	80
2	316L 304L 304 625 825 2205 2507	1/8″×0.035″	3200	100
3	316L 304L 304 625 825 2205 2507	1/4″×0.035″	2000	100
4	316L 304L 304 625 825 2205 2507	1/4″×0.049″	2000	100
5	316L 304L 304 625 825 2205 2507	3/8″×0.035″	1500	80
6	316L 304L 304 625 825 2205 2507	3/8″×0.049″	1500	100
7	316L 304L 304 625 825 2205 2507	1/2″×0.049″	1000	80
8	316L 304L 304 625 825 2205 2507	1/2″×0.065″	1000	100
9	316L 304L 304 625 825 2205 2507	φ3mm×0.7mm	3200	80
10	316L 304L 304 625 825 2205 2507	φ3mm×0.9mm	3200	100
11	316L 304L 304 625 825 2205 2507	φ4mm×0.9mm	3000	100
12	316L 304L 304 625 825 2205 2507	φ4mm×1.1mm	3000	100
13	316L 304L 304 625 825 2205 2507	φ6mm×0.9mm	2000	100
14	316L 304L 304 625 825 2205 2507	φ6mm×1.1mm	2000	100
15	316L 304L 304 625 825 2205 2507	φ8mm×1mm	1800	80
16	316L 304L 304 625 825 2205 2507	φ8mm×1.2mm	1800	100
17	316L 304L 304 625 825 2205 2507	φ10mm×1mm	1500	70
18	316L 304L 304 625 825 2205 2507	φ10mm×1.2mm	1500	70
19	316L 304L 304 625 825 2205 2507	φ10mm×2mm	500	100
20	316L 304L 304 625 825 2205 2507	φ12mm×1.5mm	500	80

OTHER STAINLESS STEEL COILED TUBE Specification:

Thickness	0.1 to 2mm,
Brand	Imported
Material Grade	304,304L,316,316L,321,316Ti,Duplex 2205,Monel400,Inconel 625,Inconel 825
Diameter	1.5 to 15 mm OD, expecially 1/4inch, 3/8 inch used largely. Stock size: 6.35mm1.24mm ,80.5mm ,80.6mm,80.8mm, 80.9mm,81mm, 9.531.24mm,101mm,ect..
Shape	Round
Unit Pipe Length	we can produce at least 8000feet-10,000 feet per Length, Also the Length can be customised by clients,
Range	All sizes and length available
Size	As per the requirment
Surface	Bright annealed, Polished
Pipe Fluid	Chemical, Water, Gas,Oil
Minimum Order Quantity	50 Feet

DIMENSIONS AND WALL THICKNESS OF STAINLESS STEEL COILED TUBE

STAINLESS STEEL CAPILLARY TUBE CHEMICAL COMPOSITION

The below table shows the chemical composition of the used for Stainless Steel COILED Tube:

STAINLESS STEEL COILED TUBE GRADES	UNS	C	Mn	P	S	Si	Cr	Ni	Mo	Ti	Nb	N
TP304	S30400	0.08	2	0.045	0.03	1	18.0-20.0	8.0-11.0
TP304L	S30403	0.035	2	0.045	0.03	1	18.0-20.0	8.0-13.0
TP316	S3160	0.08	2	0.045	0.03	1	16.0-18.0	11.0-14.0	2.0-3.0
TP316L	S31603	0.035	2	0.045	0.03	1	16.0-18.0	10.0-14.0	2.0-3.0

STAINLESS STEEL COILED TUBE MECHANICAL PROPERTIES

Material	Heat	Temperure	Tensile Strength	Yield Strength	Elongation %, Min
	Treatment	Min.	Ksi (MPa), Min.	Ksi (MPa), Min.
		º F(º C)
TP304	Solution	1900 (1040)	75(515)	30(205)	35
TP304L	Solution	1900 (1040)	70(485)	25(170)	35
TP316	Solution	1900(1040)	75(515)	30(205)	35
TP316L	Solution	1900(1040)	70(485)	25(170)	35

STAINLESS STEEL COILED TUBING EQUIVALENT GRADES

GRADE	UNS NO	DIN/WERKSTOFF
Stainless Steel Coiled Tubing 304	S30400	1.4301
Stainless Steel Coiled Tubing 304L	S30403	1.4306
Stainless Steel Coiled Pipe 316	S31600	1.4436
Stainless Steel Coiled Tube 316L	S31603	1.4404

SS COILED TUBE PRESSURE RATING

OD(INCH)	WALLTHICKNESS(INCH)	MIN TENSILE STRENGTH (PSI)	*THEORETICAL BURST PRESSURE (PSI)**	WORKING PRESSURE (PSI) 25% OF BURST	THEORETICAL YIELD POINT (PSI)**	COLLAPSE PRESSURE * (PSI)**
0.250	0.020	30,000	75,000	14,286	3,571	5,714	4,416
0.250	0.028	30,000	75,000	21,649	5,412	8,660	5,967
0.250	0.035	30,000	75,000	29,167	7,292	11,667	7,224
0.250	0.049	30,000	75,000	48,355	12,089	19,342	9,455
0.250	0.065	30,000	75,000	81,250	20,313	32,500	11,544
0.375	0.020	30,000	75,000	8,955	2,239	3,582	3,029
0.375	0.028	30,000	75,000	13,166	3,292	5,266	4,145
0.375	0.035	30,000	75,000	17,213	4,303	6,885	5,077
0.375	0.049	30,000	75,000	26,534	6,634	10,614	6,816
0.375	0.065	30,000	75,000	39,796	9,949	15,918	8,597
0.500	0.020	30,000	75,000	6,522	1,630	2,609	2,304
0.500	0.028	30,000	75,000	9,459	2,365	3,784	3,172
0.500	0.035	30,000	75,000	12,209	3,052	4,884	3,906
0.500	0.049	30,000	75,000	18,284	4,571	7,313	5,304
0.500	0.065	30,000	75,000	26,351	6,588	10,541	6,786
0.500	0.083	30,000	75,000	37,275	9,319	14,910	8,307
0.625	0.020	30,000	75,000	5,128	1,282	2,051	1,859
0.625	0.028	30,000	75,000	7,381	1,845	2,953	2,568
0.625	0.035	30,000	75,000	9,459	2,365	3,784	3,172
0.625	0.049	30,000	75,000	13,947	3,487	5,579	4,335
0.625	0.065	30,000	75,000	19,697	4,924	7,879	5,591
0.625	0.083	30,000	75,000	27,124	6,781	10,850	6,910
0.625	0.095	30,000	75,000	32,759	8,190	13,103	7,734
0.625	0.109	30,000	75,000	40,172	10,043	16,069	8,639
0.750	0.028	30,000	75,000	6,052	1,513	2,421	2,156
0.750	0.035	30,000	75,000	7,721	1,930	3,088	2,669
0.750	0.049	30,000	75,000	11,273	2,818	4,509	3,664
0.750	0.065	30,000	75,000	15,726	3,931	6,290	4,749
0.750	0.083	30,000	75,000	21,318	5,330	8,527	5,905
0.750	0.095	30,000	75,000	25,446	6,362	10,179	6,637
0.750	0.109	30,000	75,000	30,733	7,683	12,293	7,453
0.750	0.120	30,000	75,000	35,294	8,824	14,118	8,064
0.875	0.020	30,000	75,000	3,593	898	1,437	1,340
0.875	0.028	30,000	75,000	5,128	1,282	2,051	1,859
0.875	0.035	30,000	75,000	6,522	1,630	2,609	2,304
0.049	30,000	75,000	9,459	2,365	3,784	3,172
0.875	0.065	30,000	75,000	13,087	3,272	5,235	4,126
0.875	0.083	30,000	75,000	17,560	4,390	7,024	5,152
0.875	0.095	30,000	75,000	20,803	5,201	8,321	5,807
0.875	0.109	30,000	75,000	24,886	6,221	9,954	6,543
0.875	0.120	30,000	75,000	28,346	7,087	11,339	7,100
1.000	0.028	30,000	75,000	4,449	1,112	1,780	1,633
1.000	0.035	30,000	75,000	5,645	1,411	2,258	2,027
1.000	0.049	30,000	75,000	8,149	2,037	3,259	2,796
1.000	0.065	30,000	75,000	11,207	2,802	4,483	3,647
1.000	0.083	30,000	75,000	14,928	3,732	5,971	4,567
1.000	0.095	30,000	75,000	17,593	4,398	7,037	5,159
1.000	0.109	30,000	75,000	20,908	5,227	8,363	5,827
1.000	0.120	30,000	75,000	23,684	5,921	9,474	6,336
1.000	0.134	30,000	75,000	27,459	6,865	10,984	6,963
1.250	0.035	30,000	75,000	4,449	1,112	1,780	1,633
1.250	0.049	30,000	75,000	6,380	1,595	2,552	2,260

STAINLESS STEEL COILED TUBING STOCK ALSO SEARCH FOR

stainless steel Coiled Tubing trader,stainless steel Coiled Pipe astm,stainless steel coiled tubing cutter,hplc stainless steel capillary tubing,cutting stainless steel coiled tubing,stainless steel 1/16 in. capillary tubing, weight of stainless steel Capillary pipe per foot,weight of stainless steel Coiled pipe,stainless steel Coiled pipe for sale,stainless steel Coiled Pipe weight per foot,Stainless Steel Coiled tube Suppliers,stainless steel Coiled tubing grades,stainless steel Ciled tube hs code,stainless steel Capillary pipe weight chart india,stainless steel Coiled tubing metric,stainless steel Coiled tubing properties,stainless steel Coiled pipe section properties, stainless steel Coiled Tube supplier in china, exporter of stainless steel Coiled pipe 304 stainless steel Coiled pipes, stainless steel Coiled tubes distributor, stainless steel Coiled Tube manufacturer in china, ss seamless Coiled Tube stockholder in China,Stainless Steel Coiled Tubing Suppliers, seamless Coiled Tubing exporter.

3,.Production standard:

China Standard : GB/T14975/14976/13296
                        American Standard: ASTM A269/A312/A213/A511/A789/A790
                         Japanese standard: JISG3459/3463
                        German standard: DIN17456/17458

European standard: EN10216-5

4. The range of applications: petroleum, chemical, pharmaceutical, food, machinery, aerospace, construction, military, hardware,gas boilers, plumbing devices, ships, power plants and other industr

For example:

1)Medical Acupuncture with Capillary Coiled Tube,

2)High-pressure instrumentation with CoiledTube,

3)Coal exploration with a stainless steel Coiled Tubing

4)Thermostat with Coiled Tube

5)Beer machine with stainless steel Coiled Tube

6)Drinking water equipment with stainless steel Coiled Tube

5. Specifications:

1. Outer diameter :0.3mm-10mm Tolerance:0.005mm-0.01mm

2. Wall thickness :0.08mm-1.5mm Tolerance :0.01mm-0.02mm

3. Single length :10mm-8000mm

4. HV:150HV-450HV
