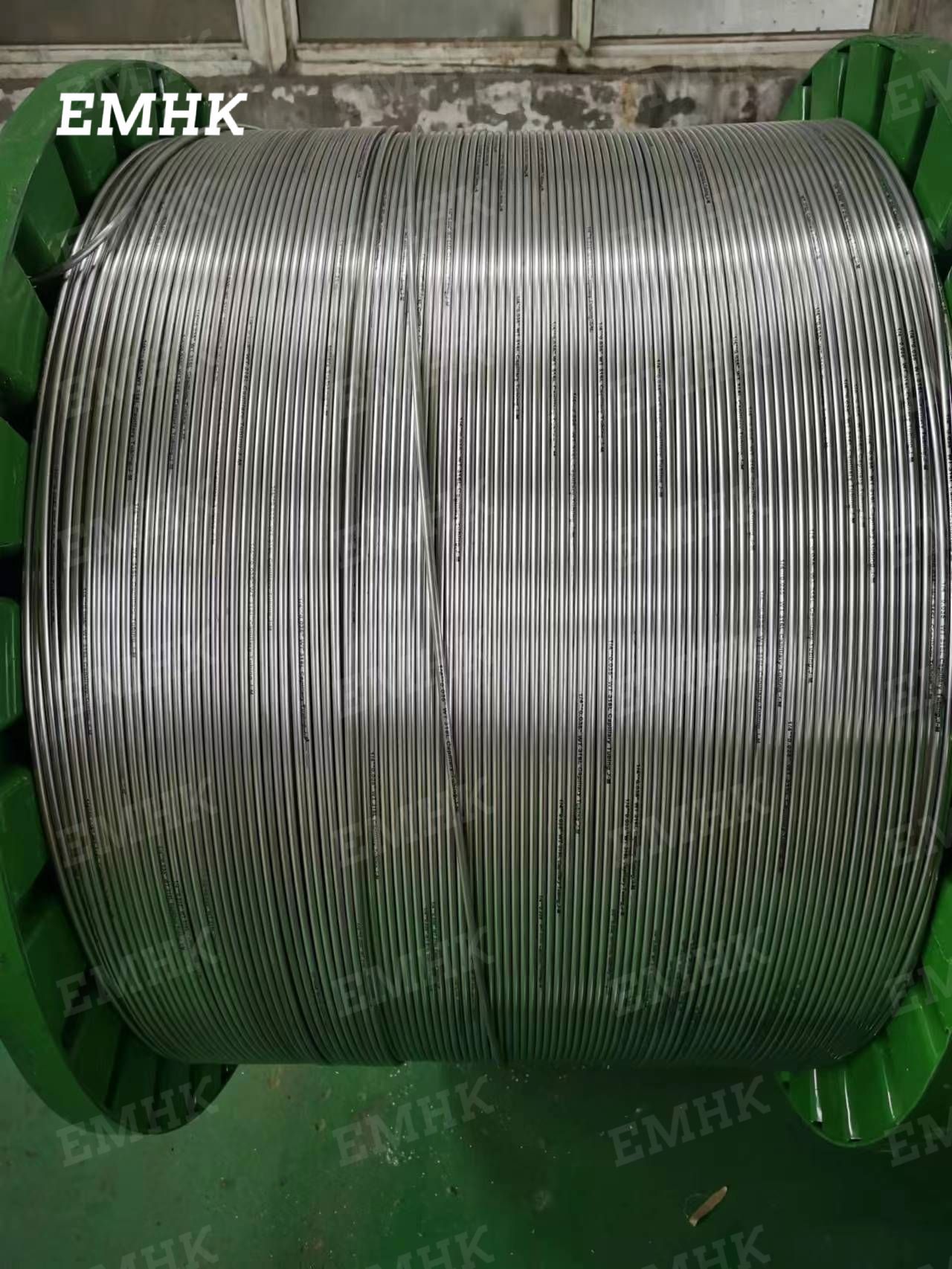

ASTM A789 Duplex 2205 Stainless steel Coiled tubing 1/4", 0.035"

Material Grade : 304 ，316L, 310S, 2205, 304, 825, 625, etc

Wall thickness: 0.8MM-1.65MM

Outer diameter of steel pipe: 1/8 "-2"

Length: 50M-10000M

Working pressure: 50MPA-120MPA

Note: Material specifications can be customized according to user requirements

PRODUCT DESCRIPTION

Product Description

2205 Coiled Tubing

Dear Customers,Our offered SS 2205 coiled tubing, which are mostly used for Liquid/ Gas Transportation Lines, Hydraulic control lines, Medical devices and equipment's, Chromatography applications, Measurement devices, Remote thermometer systems Small precision stainless steel antenna, Watches, Car antenna tube, Laser engraving equipment, etc.As the largest stockholder of SS Coiled Tube includes grades SS 2205 Coiled Tubing, SS 304L Coiled Tube, Stainless Steel 316L Coiled Tubing, Stainless steel 316L Coiled Pipe and Stainless Steel 316L Coiled Pipe , we can guarantee the quality , offer you the best price, Sincerely hope we can cooperate!

We Supply Super A269 Alloy 2205 Stainless steel coiled tubing pipe/capillary tube, The manufacture of Stainless steel Super Duplex 2205 capillary tubing, which is designed to handle highly corrosive conditions and situations were high strength is required. High molybdenum, chromium and nitrogen content in Super Duplex 2205 help the material withstand pitting and crevice corrosion. The material is also resistant to chloride stress corrosion cracking, to erosion corrosion, to corrosion fatigue, to general corrosion in acids. This alloy has good weldability and very high mechanical strength.stainless steel grade Super Duplex 2205stainless steel coiled tubing /coiled tubes and A269 Duplex 2205 capillary tubing

Descriptions:2205/S31803 Control Line(Coiled Tubing),

PHYSICAL PROPERTIES

Yield strength: ≥80,000 psi

Tensile strength: ≥95,000 psi

Maximum Hardness: 30C Rockwell

OD:0.250"-0.625"

Wall Thk : 0.032"-0.065"

Length:Max. 15000M/PCS

Note: special specifications, materials and length of products can be customized according to customer requirements

Duplex 2205 Capillary Pipe CHEMICAL COMPOSITION ‐ %
Mo 3.0‐3.5
C≤0.030
Mn≤2.00
P≤0.030
Ni 4.5‐6.5
S≤0.020
Si≤1.00
Cr 21.0‐23.0

2205/S31803 MATERIAL COILED TUBING SPECIFICATIONS and PRESSURE RATING

NORMAL STAINLESS STEEL COILED TUBE SPECIFICATION

Commonly Size of stainless steel coiled tube: we can product them as your request.

Standard Stainless Steel COILED Tubing Pressure Rating and Length:

Stainless Steel Capillary Tubing
ITEM	Grade	Size (MM)	Length (Mtrs)	Pressure (Mpa)
1	316L 304L 304 625 825 2205 2507	1/8″×0.025″	3200	80
2	316L 304L 304 625 825 2205 2507	1/8″×0.035″	3200	100
3	316L 304L 304 625 825 2205 2507	1/4″×0.035″	2000	100
4	316L 304L 304 625 825 2205 2507	1/4″×0.049″	2000	100
5	316L 304L 304 625 825 2205 2507	3/8″×0.035″	1500	80
6	316L 304L 304 625 825 2205 2507	3/8″×0.049″	1500	100
7	316L 304L 304 625 825 2205 2507	1/2″×0.049″	1000	80
8	316L 304L 304 625 825 2205 2507	1/2″×0.065″	1000	100
9	316L 304L 304 625 825 2205 2507	φ3mm×0.7mm	3200	80
10	316L 304L 304 625 825 2205 2507	φ3mm×0.9mm	3200	100
11	316L 304L 304 625 825 2205 2507	φ4mm×0.9mm	3000	100
12	316L 304L 304 625 825 2205 2507	φ4mm×1.1mm	3000	100
13	316L 304L 304 625 825 2205 2507	φ6mm×0.9mm	2000	100
14	316L 304L 304 625 825 2205 2507	φ6mm×1.1mm	2000	100
15	316L 304L 304 625 825 2205 2507	φ8mm×1mm	1800	80
16	316L 304L 304 625 825 2205 2507	φ8mm×1.2mm	1800	100
17	316L 304L 304 625 825 2205 2507	φ10mm×1mm	1500	70
18	316L 304L 304 625 825 2205 2507	φ10mm×1.2mm	1500	70
19	316L 304L 304 625 825 2205 2507	φ10mm×2mm	500	100
20	316L 304L 304 625 825 2205 2507	φ12mm×1.5mm	500	80

We offer Stainless Steel 2205 Capillary Tubing in small bore sizes and precise thickness are available as per the requirements of clients. Stainless Steel Capillary Tubes sizes range from 0.30 mm to 8.00 mm. They can be availed in standard or heavy wall Stainless Steel Duplex 2205 Capillary Tubing diameters of refrigerant capillary tubes range from 0.30 mm to 31.75 mm O.D. And 0.06 mm to 1.65 mm thickness and the length ranges from 1.0 mm to 6.0 mm. It is widely used in instrumentation Industries. Stainless Steel 304 capillary Pipes and Stainless Steel 316 capillary Pipes are available in precise cut to lengths are also highly effective in a wide range of temperatures. SS2205 capillary tubing is widely used for high-pressure applications.

Our offered SS 2205 capillary tubing are mostly used for Liquid/ Gas Transportation Lines, Hydraulic control lines, Medical devices and equipment's, Chromatography applications, Measurement devices, Remote thermometer systems Small precision stainless steel antenna, Watches, Car antenna tube, Laser engraving equipment, etc.As the largest stockholder of SS Capillary Tube includes grades SS 2205 Capillary Tubing , SS 304L Capillary pipe, Stainless Steel 316 Capillary tube, Stainless steel 316L Capillary tube and Stainless Steel 201 Capillary Tubing those are used in various industrial applications.

We are the ALLOY 2205 Stainless steel coiled tubing , Duplex 2205coiled tubing China Suppliers, 2205 Capillary Pipe Manufacture in China.

NORMAL STAINLESS STEEL COILED TUBE PRESSURE RATING

OD(INCH)	WALLTHICKNESS (INCH)	MIN TENSILE STRENGTH (PSI)	THEORETICAL BURST PRESSURE * (PSI)	WORKING PRESSURE (PSI) 25% OF BURST	THEORETICAL YIELD POINT ** (PSI)	COLLAPSE PRESSURE *** (PSI)
0.250	0.020	30,000	75,000	14,286	3,571	5,714	4,416
0.250	0.028	30,000	75,000	21,649	5,412	8,660	5,967
0.250	0.035	30,000	75,000	29,167	7,292	11,667	7,224
0.250	0.049	30,000	75,000	48,355	12,089	19,342	9,455
0.250	0.065	30,000	75,000	81,250	20,313	32,500	11,544
0.375	0.020	30,000	75,000	8,955	2,239	3,582	3,029
0.375	0.028	30,000	75,000	13,166	3,292	5,266	4,145
0.375	0.035	30,000	75,000	17,213	4,303	6,885	5,077
0.375	0.049	30,000	75,000	26,534	6,634	10,614	6,816
0.375	0.065	30,000	75,000	39,796	9,949	15,918	8,597
0.500	0.020	30,000	75,000	6,522	1,630	2,609	2,304
0.500	0.028	30,000	75,000	9,459	2,365	3,784	3,172
0.500	0.035	30,000	75,000	12,209	3,052	4,884	3,906
0.500	0.049	30,000	75,00	18,284	4,571	7,313	5,304
0.500	0.065	30,000	75,000	26,351	6,588	10,541	6,786
0.500	0.083	30,000	75,000	37,275	9,319	14,910	8,307
0.625	0.020	30,000	75,000	5,128	1,282	2,051	1,859
0.625	0.028	30,000	75,000	7,381	1,845	2,953	2,568
0.625	0.035	30,000	75,000	9,459	2,365	3,784	3,172
0.625	0.049	30,000	75,000	13,947	3,487	5,579	4,335
0.625	0.065	30,000	75,000	19,697	4,924	7,879	5,591
0.625	0.083	30,000	75,000	27,124	6,781	10,850	6,910
0.625	0.095	30,000	75,000	32,759	8,190	13,103	7,734
0.625	0.109	30,000	75,000	40,172	10,043	16,069	8,639
0.750	0.028	30,000	75,000	6,052	1,513	2,421	2,156
0.750	0.035	30,000	75,000	7,721	1,930	3,088	2,669
0.750	0.049	30,000	75,000	11,273	2,818	4,509	3,664
0.750	0.065	30,000	75,000	15,726	3,931	6,290	4,749
0.750	0.083	30,000	75,000	21,318	5,330	8,527	5,905
0.750	0.095	30,000	75,000	25,446	6,362	10,179	6,637
0.750	0.109	30,000	75,000	30,733	7,683	12,293	7,453
0.750	0.120	30,000	75,000	35,294	8,824	14,118	8,064
0.875	0.020	30,000	75,000	3,593	898	1,437	1,340
0.875	0.028	30,000	75,000	5,128	1,282	2,051	1,859
0.875	0.035	30,000	75,000	6,522	1,630	2,609	2,304
0.049	30,000	75,000	9,459	2,365	3,784	3,172
0.875	0.065	30,000	75,000	13,087	3,272	5,235	4,126
0.875	0.083	30,000	75,000	17,560	4,390	7,024	5,152
0.875	0.095	30,000	75,000	20,803	5,201	8,321	5,807
0.875	0.109	30,000	75,000	24,886	6,221	9,954	6,543
0.875	0.120	30,000	75,000	28,346	7,087	11,339	7,100
1.000	0.028	30,000	75,000	4,449	1,112	1,780	1,633
1.000	0.035	30,000	75,000	5,645	1,411	2,258	2,027
1.000	0.049	30,000	75,000	8,149	2,037	3,259	2,796
1.000	0.065	30,000	75,000	11,207	2,802	4,483	3,647
1.000	0.083	30,000	75,000	14,928	3,732	5,971	4,567
1.000	0.095	30,000	75,000	17,593	4,398	7,037	5,159
1.000	0.109	30,000	75,000	20,908	5,227	8,363	5,827
1.000	0.120	30,000	75,000	23,684	5,921	9,474	6,336
1.000	0.134	30,000	75,000	27,459	6,865	10,984	6,963
1.250	0.035	30,000	75,000	4,449	1,112	1,780	1,633
1.250	0.049	30,000	75,000	6,380	1,595	2,552	2,260

STAINLESS STEEL COILED TUBING DIMENSIONAL TOLERANCES

SIZE OD		NOMINAL WALL THICKNESS		OUTSIDE DIAMETER TOLERANCE		LENGTH TOLERANCE		WALL THICKNESS TOLERANCE
(in)	(mm)	(in)	(mm)	(in)	(mm)	(in)	(mm)	(%)
½	12.7	0.065	1.65	+/-0.005	+/-0.13	+?, -0	+3.18, -0	+/-10.0%
¾	19.1	0.065	1.65	+/-0.005	+/-0.13	+?, -0	+3.18, -0	+/-10.0%
1	25.4	0.065	1.65	+/-0.005	+/-0.13	+?, -0	+3.18, -0	+/-10.0%
1½	38.1	0.065	1.65	+/-0.008	+/-0.20	+?, -0	+3.18, -0	+/-10.0%
2	50.8	0.065	1.65	+/-0.008	+/-0.20	+?, -0	+3.18, -0	+/-10.0%
2½	63.5	0.065	1.65	+/-0.010	+/-0.25	+?, -0	+3.18, -0	+/-10.0%
3	76.2	0.065	1.65	+/-0.010	+/-0.25	+?, -0	+3.18, -0	+/-10.0%
4	101.6	0.083	2.11	+/-0.015	+/-0.38	+?, -0	+3.18, -0	+/-10.0%
6	152.4	0.109	2.77	+/-0.030	+/-0.76	+1, -0	+25.4, -0	+/-10.0%

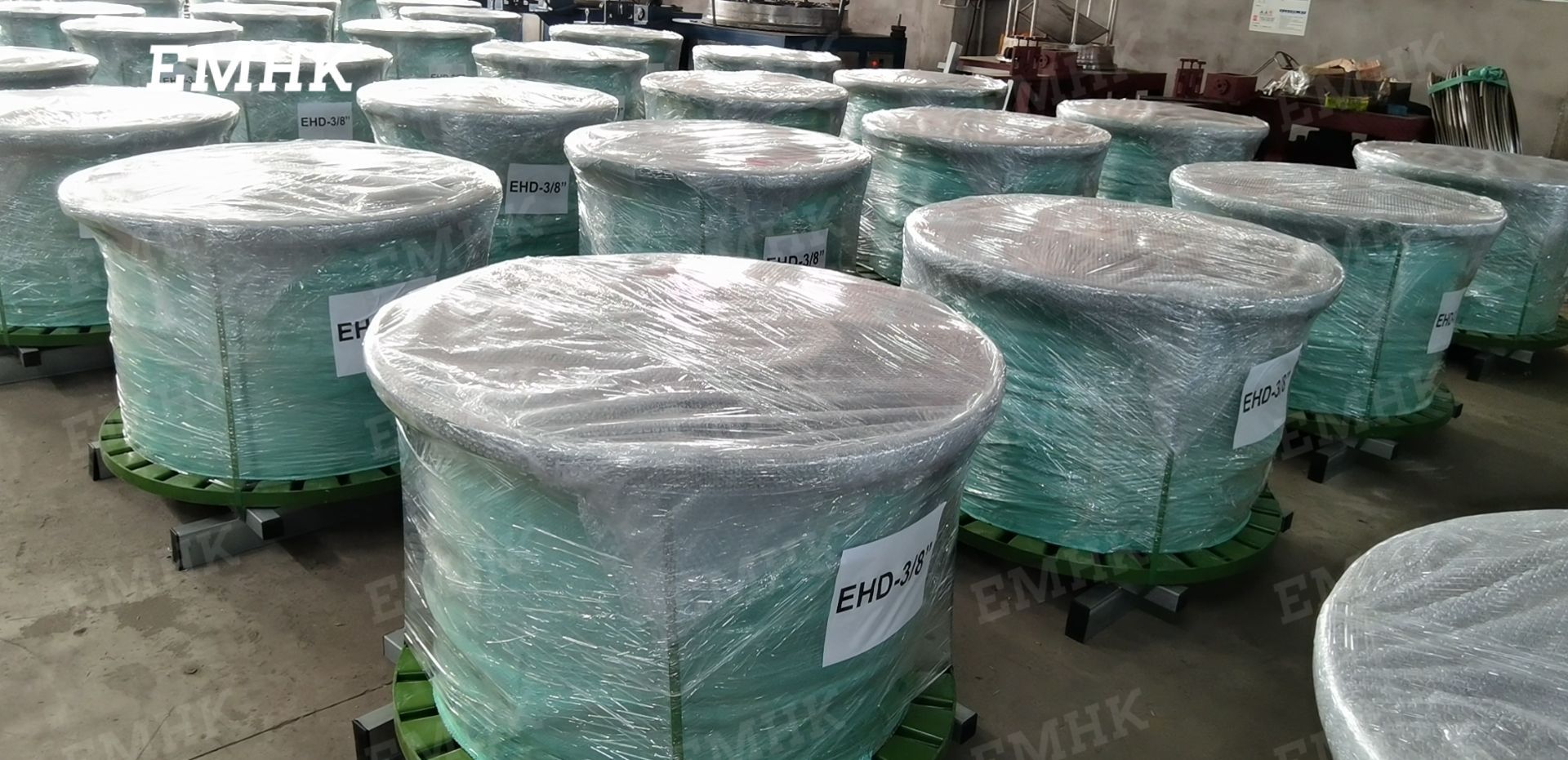

STAINLESS STEEL COILED TUBES, SEAMLESS COILED TUBE, WELDED COILED TUBES EX- STOCK

304	310
304L	316
304H	316L
309	316Ti
310	321/321H
310S	347/347H
316	304
316L	304L
316Ti	304H
321/321H	309
347/347H	310
304	310S
304L	316
304H	316L
309	316Ti
310	321/321H

Duplex 2205 COILED TUBING STOCK SUPPLY APPLICATIONS

These stainless steel 2205 Coiled Tubing are sold to a wide range of industries/markets, due to their overall corrosion resistance and good machinability:

Stainless Steel Coiled Tubing for Chemical and petrochemical
SS Coiled tube used for Power generation
Stainless Steel Coiled Tube for Renewable energy
SS Coiled Tubing for Pulp and Paper
SS CoiledTube for Process piping
Stainless Steel Coiled Pipe applications for Food and beverage
SS Coiled Tubing used for Oil and gas
Stainless Steel Coiled Tube applications in Mining
SS Coiled Tubing used for Water/waste
Stainless Steel Coiled Tubing application for Marine Industry
